VERTICAL&HORIZONTAL MILLING MACHINE
- FVH-260S(STEP)

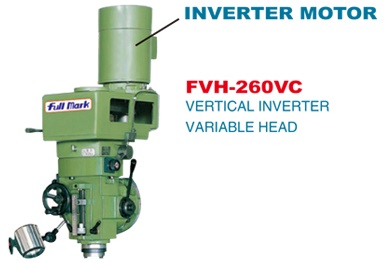

- FVH-260VS FVH-260VC(VARIABLE)
Description
| Specification |
MODEL |
FVH-260S
(STEP) |
FVH-260VS
FVH-260VC
(VARIABLE) |
| TABLE |
SIZE: (L X W) |
300×1270mm
(300×1370mm Option) |
| T SLOT (W×NO.×PITCH) |
16×3×70mm |
| TRAVEL |
X,Y,Z-AUTO |
840×400×450mm |
| FEED |
LONG. FEED (mm/min) |
30-825mm (8 Speed) |
| LONG. RAPID TRAVERSE |
1300 mm/min |
| VERTI. RAPID TRAVERSE |
400 mm/min |
VERTICAL
SPINDLE |
SPINDEL NOSE |
ISO#40 |
| NO. OF SPEED |
10 steps |
VARIABLE |
| SPINDEL SPEED (RPM) |
58-2780 |
50-3400 |
| 50-3400 |
| (INVERTER) |
| SWIVELLING ANGLE |
45 ํ |
| QUILL TRAVEL |
140 mm |
| QUILL OUTSIDE DIA |
105 mm O.D. |
| QUILL FEEDS/REV. |
0.04/0.08/0.14 mm |
| SPINDLE NOSE TO TABLE |
180-600 mm (Min/Max) |
Specification |
MODEL |
FVH-260S
(STEP) |
FVH-260VS
FVH-260VC
(VARIABLE) |
| TABLE |
SPINDLE CENTER TO COLUMN |
180-880 mm |
| CROSS TRAVEL OF RAM |
450 mm |
HORIZONTAL
SPINDLE |
SPINDLE NOSE |
ISO#40 |
| SPINDLE SPEED (RPM) |
75-1420 rpm |
| NO. OF SPEED |
9 steps |
| SPINDLE TO BOTTOM OF RAM |
187 mm |
| SPINDLE CENTER TO TABLE |
0-500 mm |
| MOTOR |
VERTICAL SPINDLE |
5 HP |
| HORIZONTAL SPINDLE |
5 HP |
| TABLE FEED (LONG). |
1/2 HP |
| TABLE RAPID (VERTICAL) |
1/2 HP |
| COOLANT PUMP |
1/8 HP |
| SIZE |
MACHINE (L×W×H) |
1970×1700×2550 mm |
| NET WEIGHT (KGS) |
2,100 kgs |
| MORIZONTAL ARBOR |
27 mm |
