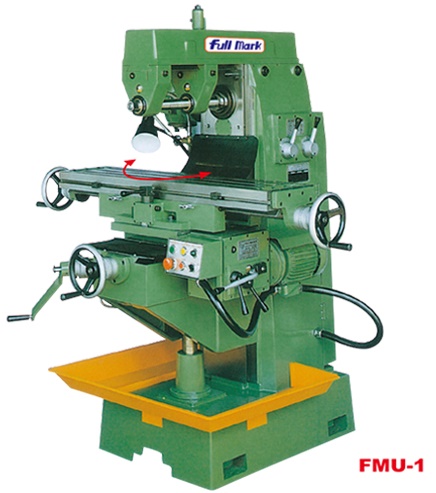

UNIVERSAL MILLING MACHINE
Description
| Specification |
MODEL |
FMU-1 |
| TRAVEL |
TABLE WORKING
SURFACE |
240×1055mm
(300×1200mm Option) |
| TABLE SWIVEL ANGLE |
45′ (Right & Left) |
| T SLOT (W×NO.×PITCH) |
16×3×65mm |
LONGITUDINALA/CROSS/
VERTICAL TRAVEL |
560×300×420 mm |
FEED SPEED RANGE
FOR LONGITUDINAL (X)
(GEAR BOX FEED) |
17-203 mm (6 steps) |
| 17-405 mm (12 steps) (Option) |
RAPID SPEED RANGE
OF LONGITUDINAL (X) |
1713 mm/min |
SAPID SPEED
(for Y & Z AXIS) |
1200 mm/min (Option)
(Power Feed:AL-500P) |
HORIZONTAL
SPINDLE |
SPINDLE SPEED (RPM) |
70-1225 Rpm |
| SPINDLE TAPER |
ISO40 |
SPINDLE CENTER TO
TABLE SURFACE |
420mm |
SPINDLE CENTER TO
OVER RAM BOTTOM |
120 mm |
| RAM TRAVEL |
430mm |
| Specification |
MODEL |
FMU-1 |
VERTICAL
SPINDLE |
SPINDLE NOSE TO
TABLE SURFACE |
320 mm |
| SPINDLE TAPER |
ISO40 |
| QUILL TRAVEL |
No Quill |
| HEAD SWIVEL ANGLE |
45′ (Righ & Left) |
HORIZONTAL
SPINDLE |
HORIZONTAL MILLNG |
3HP 4P
(3HP 4/8P-Option) |
LONGITUDINAL
(GEAR FEED) |
1HP 4P
(1HP 2/4P-Option) |
CROSS&VERTICAL
FEED |
250 Watt (Option)
(Power Feed:AL-500P) |
| COOLANT PUMP |
1/8HP |
| BASE DIMENSION (L×W×H) |
830×585×230 mm |
| MACHINE DIMENSION (L×W×H) |
1280×1560×1600mm |
| NET WEIGHT / GROSS WEIGHT |
1100/1250 kgs |
| PACKING DIMENSION (L×W×H) |
1365×1180×1740 mm |
