Description

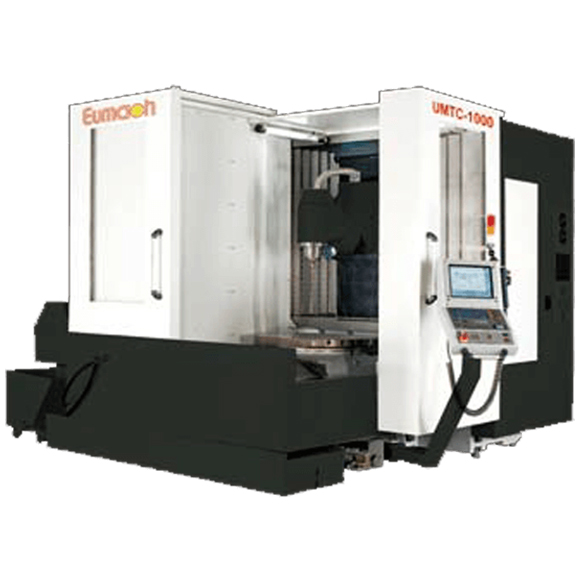

5 Axis Mill Turn Machining
The most efficient & intelligent machining concept for multi-sided high performance machining, increase productivity, flexibility and repeatability.

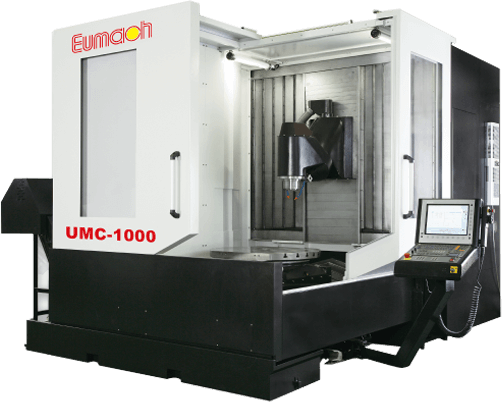

Sliding front & side doors with a super wide top opening,
this make very easily for straight forward loading awkard shaped workpiece.
Features
- 1,000 mm x 800 mm x 700 mm three axis travel
- 1,000 mm x 800 mm working rotary table with 1500kg load
- 0.001 degree swivel milling head and rotary table
Torque motor driven B axis swivel milling head Worm gear driven C axis rotary table - Standrard 3 axis linear scales + 2 axis rotary encoders
- BT#40 / 14,000 RPM / 29.3 kW motor spindle
- Time saving thanks to multi-sided machining without having re-set
- Maximum productivity thanks to rapid movement and high acceleration
- Unlimited flexibility & versatility when manufacturing individual part
- Maximum stability thanks to optimum load distribution
- Highest machine precision repeatability thanks to the avoidence of any axis overlapping
Specification
( ) Option
