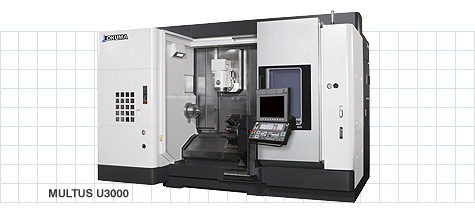

| SPECIFCATIONS | Model | MULTUS U3000 | MULTUS U4000 |
| Max turning dia | ∅ mm | 650 | 650 |
| Max work length | min | 1,000/1,500 | 1,500/2,000 |
| Spindle speed | min x-1 | 5,000 | 4,200 |
| Turret | Upper: H1 ATC, Lower: V12 L/M | Upper: H1 ATC, Lower: V12 L/M | |
| Motor | kW | VAC 22/15 | PREX 22/15 |
| Floor space | mm | 4,925×2,995 – 5,425×3,052 | 5,425×2,995 – 6,425×3,052 |
| Spec | W, 2S | W, 2S |
