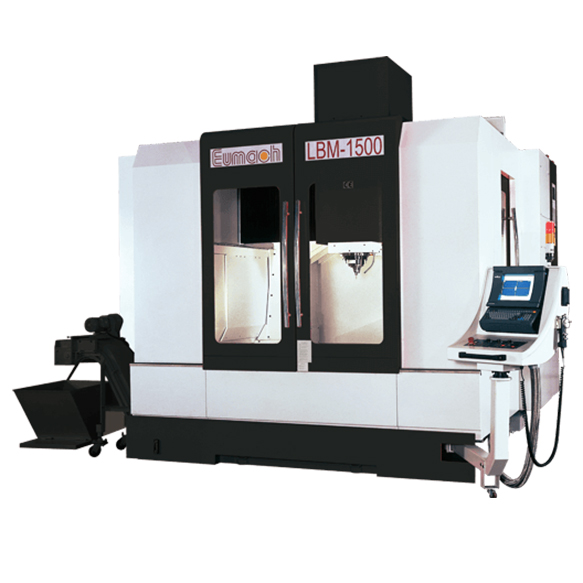

Bridge Type Machining
The newest eumach bridge type vertical machining center not only with further innovations in rigidity, accuracy, speed and heavy cutting but also for true die / mold evolution.
Large workpiece load & traverse capacity
1,750 mm x 1,000 mm x 750 mm traverse, 1,750 mm twin column distance, 1,600 mm x 1,000 mm table size with up to 3,00 kgs workpiece load.

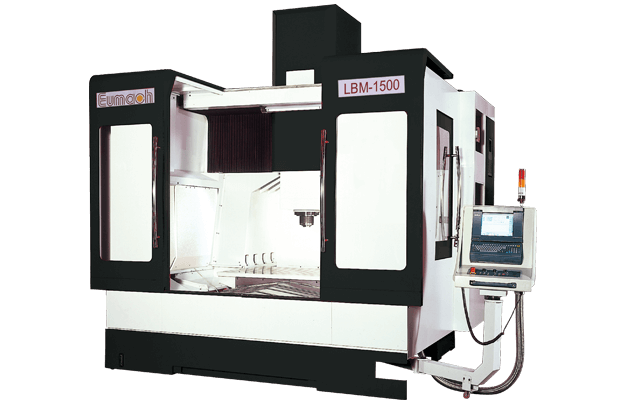

Rigid double column bridge type construction
The twin column & bridge is made of one piece Meehanite highest quality casting to ensure its rigidity and reduce vibrations during high speed heavy cutting.
Spindles with full power range
Powerful built-in motor spindle 18,000 RPM, HSK-A63, 26 & 32 kW / 124 & 154 Nm.
Advanced latest CNC digital controls
Heidenhain i TNC-530, Siemens 840D, Fanuc 0i-MF, 31i-MB
The right control in the right position
A swivel control panel located in right side of machine, easily move to the most suitable position to make the operator’s job more straight-forward and enhances safety and productivity.
Automatic tool changer
A disk type 16 stations automatic tool changer provides as standard
Chip & water drainage
Twin built-in base casting chips & water flushing drains by coolant spray nozzles on twin ends of bridge bottom ends and an additional one ander bridge, efficiently carry chips to the front side coolant tank or chip conveyor & bucket.
Roller guideways & ballscrews
The high rigid & heavy duty roller type linear motion guideways on 3 axes to provide low starting inertia, low friction and high acceleration, rates optimizing servo drive and ensure machine response immediately & precisely for high speed cutting requirements, especially in rapid positioning and contouring cutting.
Compact & clear guardings
Full cover for all electrics, water cooler, transformers, pneumatics etc. for a clean environment & convenient after service.
|Overall size ( mm )||1,600 x 1,000|
|T-Slot ( mm )||18 x 7 x 125|
|Maximum loading ( kgs )||3,000|
|X axis ( mm )||1,750 head left & right|
|Y axis ( mm )||1,000 table in & out|
|Z axis ( mm )||750 head up & down|
|Between 2 columns ( mm )||1,750|
|Spindle to table top ( mm )||107 ~ 857|
|Floor to table top ( mm )||840|
|Motor||S1 / S6 : 26 / 32 kW, 124 / 154 Nm|
|Taper||HSK-A63 ( BT#40)|
|Speed ( RPM )||18,000 ( 24,000 )|
|Cutting ( m / min )||up to 20|
|Rapid x / y / z ( m / min )||30 / 30 / 30|
|Minimum setting ( mm )||0.001|
|Automatic tool changer|
|No. of tools||carousel armless 16|
|Max. tool DIA. / length ( mm )||80 / 250|
|Max. tool weight ( kgs )||7|
|Coolant & Lubrication|
|Coolant tank volume ( liters )||300|
|Pneumatic required ( kgf / cm2 )||7|
|Lubrication tank ( liters )||4|
|Position ( mm )||± 0.005 / 300|
|Repeatability ( mm )||0.003|
|Roundness ( mm )||0.01 / 300 DIA.|
|Machine net weight ( kgs )||15,000|
