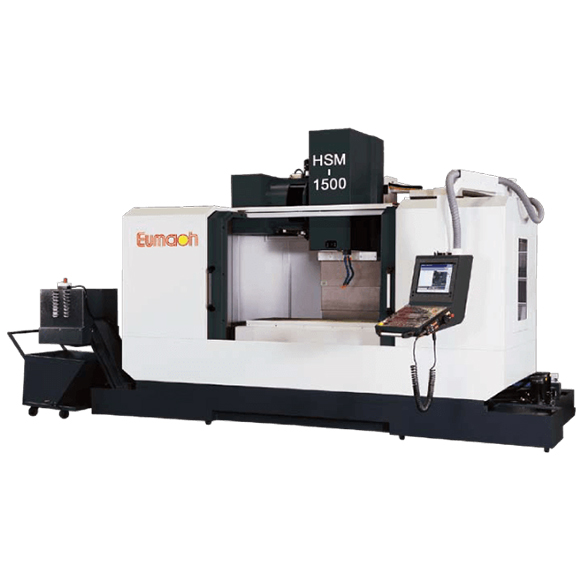

HSM-1500

C Frame/Linear way

Categories: ,

Description

Superior Designed Features

HSM-1500 : 1,500 x 700 x 610(800) (mm)

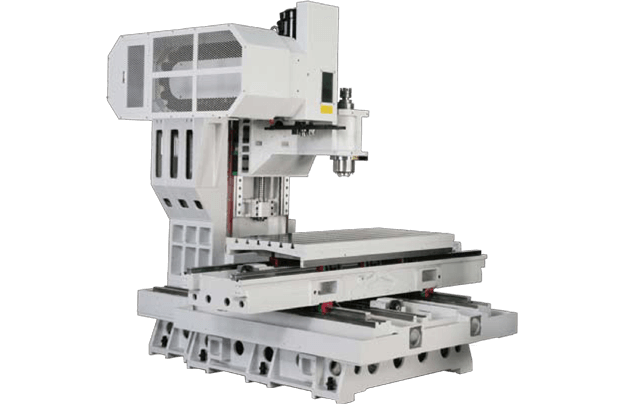

All castings are being stress relieved and seasoning treated for long term accuracy & long service life.

Specification

( ) Option
Model HSM-1500
Table
Overall size ( mm ) 1,600 x 700
T slots ( size x No. x pitch ) ( mm ) 18 x 5 x 100
Max. loading ( kg ) 2,000
Travel
X axis ( mm ) 1,500
Y axis ( mm ) 700
Z axis ( mm ) 610 (800)
3 Axis Linear way
Linear way width ( mm ) 45 / 55 / 55
Distances
Spindle to column ways ( mm ) 758
Spindle to z axis cover ( mm ) 706
Spindle to table top ( mm ) 140 ~ 750
Floor to table top ( mm ) 1,008
Spindle
Taper #40 (50)
Speed ( RPM ) 8 ~ 30K (6 ~ 15K)
Front bearing dia. ( mm ) 70 (90)
Motor ( kW ) 7.5 / 11 (~ 22 / 26)
Transmission 1:1 HTD belt ( direct coupling, motor spindle )
Axis motors
Axis motor torque ( Nm ) 22 / 22 / 40
Motor power ( kW ) 4 / 4 / 6
Rapid feed rate ( m ) 48 / 48 / 36
ATC swing arm
No. of tools 24 (32, 40)
Max. tool diameter ( mm ) 125 (150)
Max. tool length ( mm ) 250 (300)
Ballscrews
Dia. x pitch ( X / Y / Z ) 50 / 50 / 50 x 16
Precision class ( C3 ) ( mm / 300 mm ) 0.008
Net weight
Net weight ( kg ) 12,000

Standard Accessories

  • Arm type tool changer system
  • Screw type chip quger & bucket
  • Full splash guard
  • Programmable coolant system
  • Automatic lubrication system
  • Spindle air blast system
  • Working lamp
  • Alarm lamp for abnormal situation
  • Indication lamp for dwell & end of job
  • Levelling bolts & pads
  • RS-232 terminal interface port
  • Machine & control manuals
  • Soznners & wernches
  • Spindle oil cooler device
