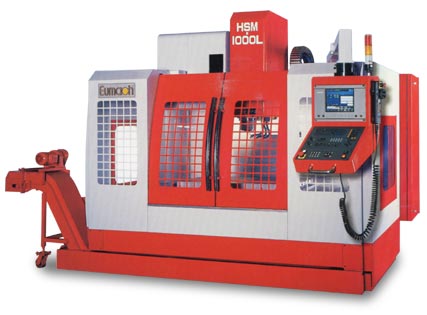

HSM-1000L

  • 780 x 450
  • HSM-600
  • HSM-1000
  • HSM-1000L
Category:

Description

SPECIFCATIONS Model 780 x 450 HSM-600 HSM-1000 HSM-1000L
TABLE Overall Size MM 780 x 450 900 x 450 1070 x 500 1200 x 610
Working Area MM 650 x 380 900 x 450 1070 x 500 1200 x 610
T Slots(SizexNoxPitch) MM 18 x 3 x 100 18 x 4 x 100 18 x 5x 100 18 x 6 x 100
Maximum Loading KG 300 400 500 850
TRAVEL X/Y/Z Axis MM 500/400/500 600/450/510 1020/510/510 1020/610/610
DISTANCES Spindle To Column Ways MM 450 550 645
Spindle To Table Top MM 100-500 150-660 110-720 150-750
Floor To Table Top MM 805 750 810 820
SPINDLE Taper BT# 40
Speed RPM 8000
Front Bearing Diameter MM 60 70
Motor KW 5.5 7.5
AXIS MOTORS: X & Y / Z Heidenhain/Siemens/Selca NM 7 14
RAPID FEEDRATE: X / Y / Z Cutting Feedrate MM/MIN 1-7000
With European Control M/MIN 18/18/15 20/20/18 30/30/24
Minimum Setting MM 0.001
AUTOMATIC TOOL CHANGER Type Of ATC Carrousel Swing Arm
No. Of ATC TOOLS 16 24
Max. Tool (Dia/Length) MM 80/250 150/300
Max. Tool Weight KG 7
Tool To Tool SEC. 6 3
Chip To Chip SEC. 12 10
BALLSCRWS ON 3 AXIS Dia. x Pitch(X.Y Axis) MM xMM 40 x 10 40 x 12 40 x 16
Dia. x Pitch(Z Axis) MM xMM 40 x 10 40 x 12 50 x 12
Precision Class C3,MM/300MM 0.008
COOLANT & LUBRICATION Coolant Motor Power KW 0.86
Coolant Tank Volume L 120
Coolant Motor Capacity L/MIN 20
Lubrication Motor Power WATT 25
Lubrication Tank Volume L 2
ACCURACY Positioning MM JIS 6338:±0.005mm /300mm VDI 3441: P0.014mm
Repeatability MM JIS 6338:±0.003mm VDI 3441: PS0.014mm
Roundness MM JIS 6338:±0.01mm / 300mm DIAMETER
MISCELLANEOUS Machine Net Weight KG 3500 5000 5500 6800
Power Required KVA 15 20
Pneumatic Required KG/CM 7
End
