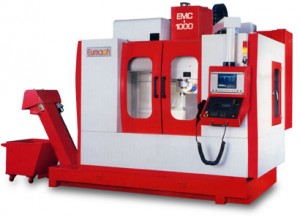

| TABLE |
Overall Size |
MM |
1260 x 610 |
1400 x 710 |
1500 x 710 |
| Working Area |
MM |
1260 x 610 |
140 x 710 |
1500 x 710 |
| T Slots(SizexNoxPitch) |
MM |
18 x 5 x 100 |
18 x 6 x 125 |
| Maximum Loading |
KG |
1000 |
1500 |
| TRAVEL |
X/Y/Z Axis |
MM |
1016 / 640/640 |
1200 / 700 / 760 |
1400 / 700 / 760 |
| DISTANCES |
Spindle To Column Ways |
MM |
700 |
760 |
| Spindle To Table Top |
MM |
160-800 |
125-885 |
| Floor To Table Top |
MM |
860 |
850 |
| SPINDLE |
Taper |
BT# |
40 |
50 |
| Speed |
RPM |
8000 |
4000 |
| Front Bearing Diameter |
MM |
70 |
90 |
| Motor |
KW |
11 |
15 |
| AXIS MOTORS:X/Y/Z |
Heidenhain/Siemens/Selca |
NM |
13 |
20 |
| Cutting Feedrate |
MM/MIN |
1-8000 |
| Rapid Feedrate X/Y/Z |
M/MIN |
15/15/12 |
| Minimum Setting |
MM |
0.001 |
| AUTOMATIC TOOL CHANGER |
Type Of ATC |
|
Carrousel |
| No. Of ATC |
TOOLS |
20 |
| Max. Tool (Dia/Length) |
MM |
100/250 |
125/300 |
| Max. Tool Weight |
KG |
7 |
15 |
| Tool To Tool |
SEC. |
7 |
10 |
| Chip To Chip |
SEC. |
14 |
20 |
| BALLSCRWS ON 3 AXIS |
Dia. x Pitch(X.Y Axis) |
MM xMM |
40 x 10 |
50 x 10 |
| Dia. x Pitch(Z Axis) |
MM xMM |
50 x 10 |
| Precision Class |
C3,MM/300MM |
0.008 |
| COOLANT & LUBRICATION |
Coolant Motor Power |
KW |
0.86 |
| Coolant Tank Volume |
L |
120 |
| Coolant Motor Capacity |
L/MIN |
20 |
| Lubrication Motor Power |
WATT |
15 |
| Lubrication Tank Volume |
L |
2 |
| ACCURACY |
Positioning |
MM |
JIS 6338:±0.005mm /300mm VDI 3441: P0.014mm |
| Repeatability |
MM |
JIS 6338:±0.003mm VDI 3441: PS0.01mm |
| Roundness |
MM |
JIS 6338:±0.01mm / 300mm DIAMETER |
| MISCELLANEOUS |
Machine Net Weight |
KG |
7000 |
12000 |
13000 |
| Power Required |
KVA |
20 |
25 |
| Pneumatic Required |
KG/CM 2 |
7 |
